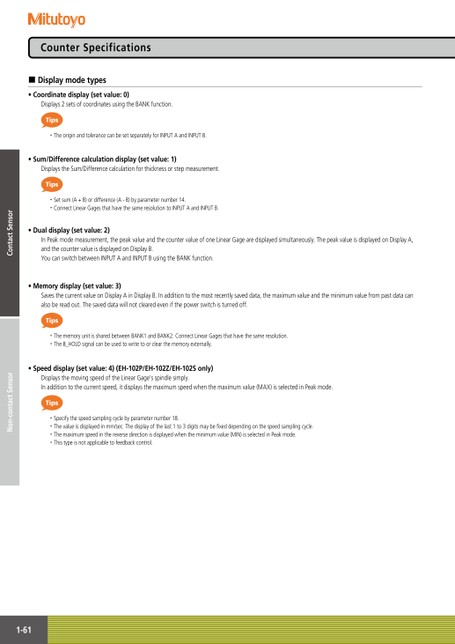

CounterSpecifications■Displaymodetypes•Coordinatedisplay(setvalue:0)Displays2setsofcoordinatesusingtheBANKfunction.Tips・TheoriginandtolerancecanbesetseparatelyforINPUTAandINPUTB.•Sum/Differencecalculationdisplay(setvalue:1)DisplaystheSum/Differencecalculationforthicknessorstepmeasurement.Tips・・Setsum(A+B)ordifference(A-B)byparameternumber14.ConnectLinearGagesthathavethesameresolutiontoINPUTAandINPUTB.•Dualdisplay(setvalue:2)InPeakmodemeasurement,thepeakvalueandthecountervalueofoneLinearGagearedisplayedsimultaneously.ThepeakvalueisdisplayedonDisplayA,andthecountervalueisdisplayedonDisplayB.YoucanswitchbetweenINPUTAandINPUTBusingtheBANKfunction.•Memorydisplay(setvalue:3)SavesthecurrentvalueonDisplayAinDisplayB.Inadditiontothemostrecentlysaveddata,themaximumvalueandtheminimumvaluefrompastdatacanalsobereadout.Thesaveddatawillnotclearedevenifthepowerswitchisturnedoff.Tips・・ThememoryunitissharedbetweenBANK1andBANK2.ConnectLinearGagesthathavethesameresolution.TheB_HOLDsignalcanbeusedtowritetoorclearthememoryexternally.•Speeddisplay(setvalue:4)(EH-102P/EH-102Z/EH-102Sonly)DisplaysthemovingspeedoftheLinearGage'sspindlesimply.Inadditiontothecurrentspeed,itdisplaysthemaximumspeedwhenthemaximumvalue(MAX)isselectedinPeakmode.Tips・・・・Specifythespeedsamplingcyclebyparameternumber18.Thevalueisdisplayedinmm/sec.Thedisplayofthelast1to3digitsmaybefixeddependingonthespeedsamplingcycle.Themaximumspeedinthereversedirectionisdisplayedwhentheminimumvalue(MIN)isselectedinPeakmode.Thistypeisnotapplicabletofeedbackcontrol.1-61
| <
|
> |
>>
