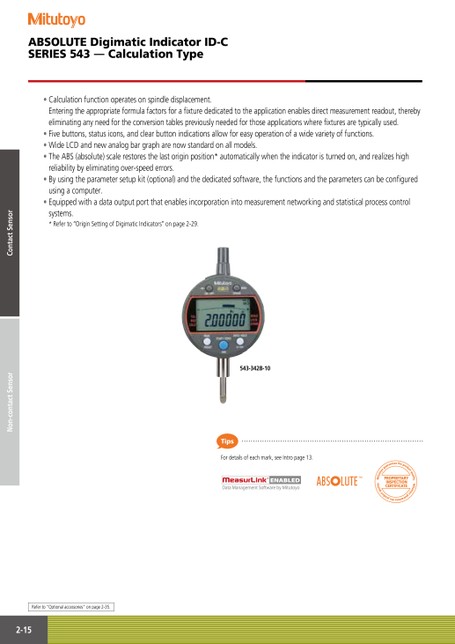

ABSOLUTEDigimaticIndicatorID-CSERIES543̶CalculationType•Calculationfunctionoperatesonspindledisplacement.Enteringtheappropriateformulafactorsforafixturededicatedtotheapplicationenablesdirectmeasurementreadout,therebyeliminatinganyneedfortheconversiontablespreviouslyneededforthoseapplicationswherefixturesaretypicallyused.•Fivebuttons,statusicons,andclearbuttonindicationsallowforeasyoperationofawidevarietyoffunctions.•WideLCDandnewanalogbargrapharenowstandardonallmodels.•TheABS(absolute)scalerestoresthelastoriginposition*automaticallywhentheindicatoristurnedon,andrealizeshighreliabilitybyeliminatingover-speederrors.•Byusingtheparametersetupkit(optional)andthededicatedsoftware,thefunctionsandtheparameterscanbeconfiguredusingacomputer.•Equippedwithadataoutputportthatenablesincorporationintomeasurementnetworkingandstatisticalprocesscontrolsystems.*Referto“OriginSettingofDigimaticIndicators”onpage2-29.543-342B-10TipsFordetailsofeachmark,seeIntropage13.Referto"Optionalaccessories"onpage2-35.2-15
| <
|
> |
>>
