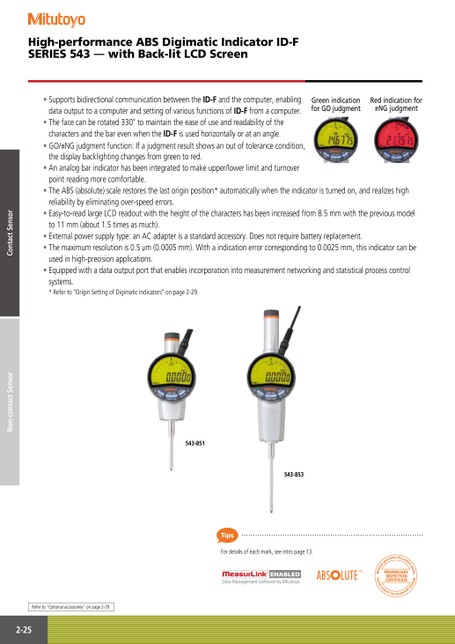

High-performanceABSDigimaticIndicatorID-FSERIES543̶withBack-litLCDScreen•SupportsbidirectionalcommunicationbetweentheID-Fandthecomputer,enablingdataoutputtoacomputerandsettingofvariousfunctionsofID-Ffromacomputer.•Thefacecanberotated330°tomaintaintheeaseofuseandreadabilityofthecharactersandthebarevenwhentheID-Fisusedhorizontallyoratanangle.•GO/±NGjudgmentfunction:Ifajudgmentresultshowsanoutoftolerancecondition,thedisplaybacklightingchangesfromgreentored.•Ananalogbarindicatorhasbeenintegratedtomakeupper/lowerlimitandturnoverpointreadingmorecomfortable.GreenindicationforGOjudgmentRedindicationfor±NGjudgment•TheABS(absolute)scalerestoresthelastoriginposition*automaticallywhentheindicatoristurnedon,andrealizeshighreliabilitybyeliminatingover-speederrors.•Easy-to-readlargeLCDreadoutwiththeheightofthecharactershasbeenincreasedfrom8.5mmwiththepreviousmodelto11mm(about1.5timesasmuch).•Externalpowersupplytype:anACadapterisastandardaccessory.Doesnotrequirebatteryreplacement.•Themaximumresolutionis0.5µm(0.0005mm).Withaindicationerrorcorrespondingto0.0025mm,thisindicatorcanbeusedinhigh-precisionapplications.•Equippedwithadataoutputportthatenablesincorporationintomeasurementnetworkingandstatisticalprocesscontrolsystems.*Referto“OriginSettingofDigimaticIndicators”onpage2-29.543-851543-853TipsFordetailsofeachmark,seeIntropage13.Referto"Optionalaccessories"onpage2-39.2-25
| <
|
> |
>>
