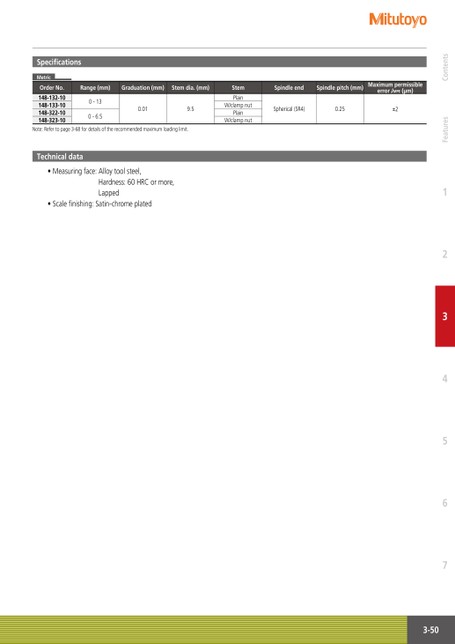

SpecificationsMetricOrderNo.148-132-10148-133-10148-322-10148-323-10Range(mm)Graduation(mm)Stemdia.(mm)0-130-6.50.019.5StemPlainW/clampnutPlainW/clampnutNote:Refertopage3-68fordetailsoftherecommendedmaximumloadinglimit.Technicaldata•Measuringface:Alloytoolsteel,Hardness:60HRCormore,Lapped•Scalefinishing:Satin-chromeplatedSpindleendSpindlepitch(mm)MaximumpermissibleerrorJMPE(µm)Spherical(SR4)0.25±23-50
| <
|
> |
>>
