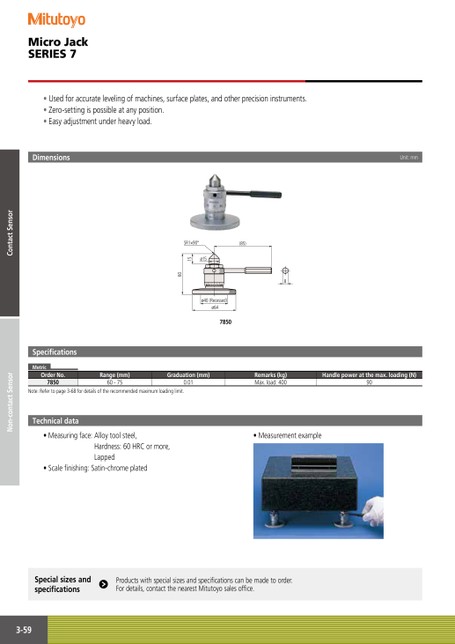

MicroJackSERIES7•Usedforaccuratelevelingofmachines,surfaceplates,andotherprecisioninstruments.•Zero-settingispossibleatanyposition.•Easyadjustmentunderheavyload.DimensionsUnit:mm8SR1×90°(85)ø151560ø40(Recessed)ø647850SpecificationsMetricOrderNo.7850Range(mm)60-75Graduation(mm)0.01Remarks(kg)Max.load:400Handlepoweratthemax.loading(N)90Note:Refertopage3-68fordetailsoftherecommendedmaximumloadinglimit.Technicaldata•Measuringface:Alloytoolsteel,•MeasurementexampleHardness:60HRCormore,Lapped•Scalefinishing:Satin-chromeplatedSpecialsizesandspecificationsProductswithspecialsizesandspecificationscanbemadetoorder.Fordetails,contactthenearestMitutoyosalesoffice.3-59
| <
|
> |
>>
