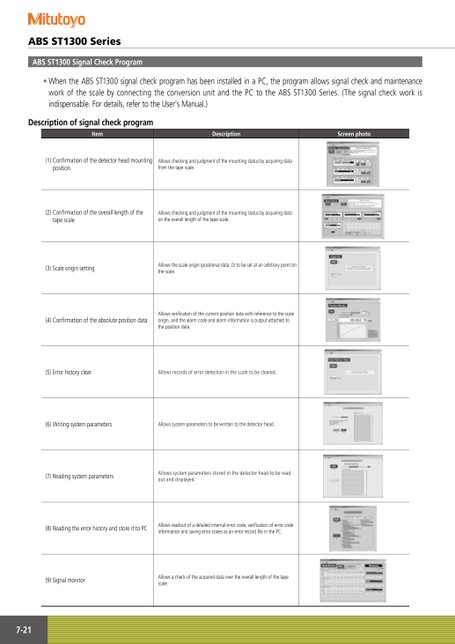

ABSST1300SeriesABSST1300SignalCheckProgram•WhentheABSST1300signalcheckprogramhasbeeninstalledinaPC,theprogramallowssignalcheckandmaintenanceworkofthescalebyconnectingtheconversionunitandthePCtotheABSST1300Series.(Thesignalcheckworkisindispensable.Fordetails,refertotheUser'sManual.)DescriptionofsignalcheckprogramItemDescriptionScreenphoto(1)ConfirmationofthedetectorheadmountingpositionAllowscheckingandjudgmentofthemountingstatusbyacquiringdatafromthetapescale.(2)ConfirmationoftheoveralllengthofthetapescaleAllowscheckingandjudgmentofthemountingstatusbyacquiringdataontheoveralllengthofthetapescale.(3)ScaleoriginsettingAllowsthescaleorigin(positionaldata:0)tobesetatanarbitrarypointonthescale.(4)ConfirmationoftheabsolutepositiondataAllowsverificationofthecurrentpositiondatawithreferencetothescaleorigin,andthealarmcodeandalarminformationisoutputattachedtothepositiondata.(5)ErrorhistoryclearAllowsrecordsoferrordetectioninthescaletobecleared.(6)WritingsystemparametersAllowssystemparameterstobewrittentothedetectorhead.(7)ReadingsystemparametersAllowssystemparametersstoredinthedetectorheadtobereadoutanddisplayed.(8)ReadingtheerrorhistoryandstoreittoPCAllowsreadoutofadetailedinternalerrorcode,verificationoferrorcodeinformationandsavingerrorcodesasanerrorrecordfileinthePC.(9)SignalmonitorAllowsacheckoftheacquireddataovertheoveralllengthofthetapescale.7-21
| <
|
> |
>>
